Описание

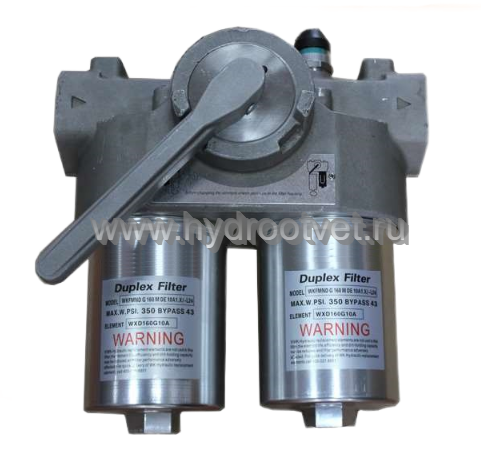

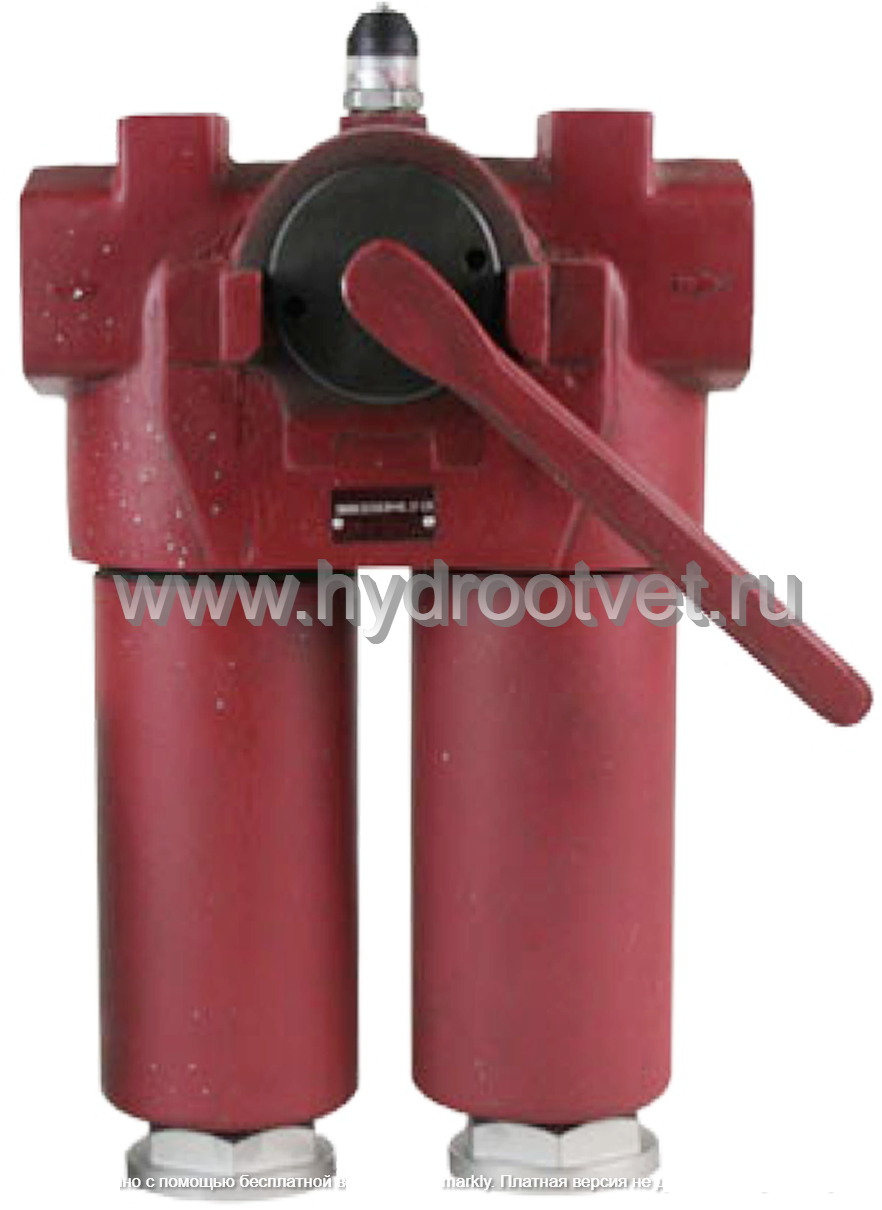

Корпусные фильтра спроектированы в соответствии с международными нормативными документами. Они состоят из головки фильтра со встроенной переключающей арматурой и ввинчиваемыми стаканами фильтра. Исполнение: без перепускного клапана; возможность подключения индикатора загрязнения; с маслосливной пробкой (FMND 160 - 400).
ПРЕДУПРЕДИТЕЛЬНЫЕ УКАЗАНИЯ
Корпусы фильтра должны быть заземлены
При использовании электрических индикаторов загрязнения перед демонтажем штепселя индикаторов необходимо обесточить установку.
Фильтры с шаровым переключением имеют допустимую утечку, обусловленную их конструкцией. Эта утечка зависит от рабочей среды.

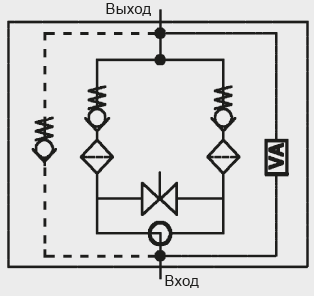

Схематическое изображение для гидравлических схем
| 1285019 | FMND100MDDXXA1.0 |
| 1285020 | FMND100MDDXXA1.0/-B7 |
| 1285023 | FMND110MDCXXA1.0 |
| 1285024 | FMND110MDCXXA1.0/-B7 |
| 1285025 | FMND140MDDXXA1.0 |
| 1285026 | FMND140MDDXXA1.0/-B7 |
| 1274758 | FMND160LDEXXA1.1 |
| 1274761 | FMND160LDEXXA1.1/-V-B7 |
| 1282284 | FMND160LDEXXA1.1/-B3 |
| 1274759 | FMND160LDEXXA1.1/-B7 |
| 1274760 | FMND160LDEXXA1.1/-V |
| 1290608 | FMND160LDEXXY1.1 |
| 1281086 | FMND160LDEXXY1.1/-B7 |
| 1277963 | FMND160LDFXXA1.1 |
| 1290609 | FMND160LDFXXA1.1/-B3 |
| 1278769 | FMND160LDFXXA1.1/-B7 |
| 1276417 | FMND160LDKXXA1.1 |
| 1274762 | FMND250LDFXXA1.1 |
| 1291675 | FMND250LDFXXA1.1/-B3 |
| 1274763 | FMND250LDFXXA1.1/-B7 |
| 1274764 | FMND250LDFXXA1.1/-V |
| 1274765 | FMND250LDFXXA1.1/-V-B7 |
| 1290610 | FMND250LDFXXY1.1 |
| 1275914 | FMND250LDKXXA1.1 |
| 1278674 | FMND250LDKXXA1.1/-B7 |
| 1290611 | FMND250LDKXXA1.1/-V-B7 |
| 1285015 | FMND40MDBXXA1.0 |
| 1285016 | FMND40MDBXXA1.0/-B7 |
| 1288416 | FMND400LDEXXA1.1 |
| 1272489 | FMND400LDEXXA1.1/-B7 |
| 1278197 | FMND400LDFXXA1.1 |
| 1272490 | FMND400LDFXXA1.1/-B7 |
| 1290612 | FMND400LDFXXY1.1/-B7 |
| 1274766 | FMND400LDKXXA1.1 |
| 1274767 | FMND400LDKXXA1.1/-B7 |
| 1274768 | FMND400LDKXXA1.1/-V |
| 1274769 | FMND400LDKXXA1.1/-V-B7 |
| 1285021 | FMND60MDBXXA1.0 |
| 1285022 | FMND60MDBXXA1.0/-B7 |
| 1285017 | FMND63MDCXXA1.0 |
| 1285018 | FMND63MDCXXA1.0/-B7 |
| 1286869 | FMNDBH/HC160LDE10A1.1 |
| 1288732 | FMNDBH/HC160LDE10C1.1 |
| 1291341 | FMNDBH/HC160LDE10D1.1/-L220 |
| 1281143 | FMNDBH/HC160LDE10D1.1/-L24 |
| 1280163 | FMNDBH/HC160LDE10LE1.1 |
| 1278610 | FMNDBH/HC160LDE10Y1.1 |
| 1276773 | FMNDBH/HC160LDE25D1.1/-L24 |
| 1280584 | FMNDBH/HC160LDE25LE1.1 |
| 1288618 | FMNDBH/HC160LDE3LZ1.1 |
| 1292132 | FMNDBH/HC160LDE6C1.1 |
| 1276074 | FMNDBH/HC160LDE6D1.1/-L220 |
| 1286140 | FMNDBH/HC250LDE3D1.1/-L24 |
| 1279619 | FMNDBH/HC250LDF10D1.1/-L24 |
| 1278661 | FMNDBH/HC250LDF10LE1.1 |
| 1281609 | FMNDBH/HC250LDF10LE1.1/-A8 |
| 1282008 | FMNDBH/HC250LDF10LZ1.1/-AV |
| 1279820 | FMNDBH/HC250LDF10Y1.1 |
| 1282744 | FMNDBH/HC250LDF25C1.1 |
| 1279131 | FMNDBH/HC250LDF25LE1.1 |
| 1281001 | FMNDBH/HC250LDF6A1.1 |
| 1291928 | FMNDBH/HC250LDF6C1.1 |
| 1276073 | FMNDBH/HC250LDF6D1.1/-L220 |
| 1281089 | FMNDBH/HC250LDF6LE1.1 |
| 1285552 | FMNDBH/HC250LDF6LE1.1/-A8 |
| 1277036 | FMNDBH/HC250LDF6LZ1.1/-DB |
| 1288171 | FMNDBH/HC400LDE10D1.1/-LED |
| 1281423 | FMNDBH/HC400LDF10D1.1/-L220 |
| 1291609 | FMNDBH/HC400LDF10D1.1/-L24 |
| 1286099 | FMNDBH/HC400LDF10LZ1.1/-AV |
| 1280648 | FMNDBH/HC400LDF25D1.1/-L24 |
| 1291852 | FMNDBH/HC400LDF6A1.1 |
| 1285335 | FMNDBH/HC400LDF6D1.1/-L220 |
| 1273261 | FMNDBH/HC400LDF6LZ1.1/-DB |
| 1280332 | FMNDBH/HC400LDK10A1.1 |
| 1281110 | FMNDBH/HC400LDK10D1.1/-L220 |
| 1279812 | FMNDBH/HC400LDK10D1.1/-L24 |
| 1277929 | FMNDBH/HC400LDK10D1.1/-LED |
| 1279127 | FMNDBH/HC400LDK10LE1.1 |
| 1280379 | FMNDBH/HC400LDK3D1.1/-V-L110 |
| 1275491 | FMNDBH/HC400LDK6D1.1/-LED |
| 1279450 | FMNDBN/HC160LDE10A1.1 |
| 1275818 | FMNDBN/HC160LDE10A1.1/-B7 |
| 1277558 | FMNDBN/HC160LDE10B1.1/-A2-B3 |
| 1277999 | FMNDBN/HC160LDE10B1.1/-B7 |
| 1275334 | FMNDBN/HC160LDE10D1.1/-L220-B7 |
| 1276562 | FMNDBN/HC160LDE10D1.1/-L24 |
| 1277571 | FMNDBN/HC160LDE10D1.1/-L24-B7 |
| 1279191 | FMNDBN/HC160LDE10D1.1/-L48 |
| 1280148 | FMNDBN/HC160LDE10D1.1/-LED |
| 1278963 | FMNDBN/HC160LDE10LE1.1 |
| 1275736 | FMNDBN/HC160LDE10LE1.1/-B7 |
| 1280829 | FMNDBN/HC160LDE10LZ1.1/-AV |
| 1279158 | FMNDBN/HC160LDE10LZ1.1/-BO-LED |
| 1278935 | FMNDBN/HC160LDE10LZ1.1/-CN |
| 1273318 | FMNDBN/HC160LDE10LZ1.1/-DB |
| 1278436 | FMNDBN/HC160LDE10LZ1.1/-DB-A8 |
| 1276886 | FMNDBN/HC160LDE10Y1.1 |
| 1276566 | FMNDBN/HC160LDE25B1.1 |
| 1288573 | FMNDBN/HC160LDE25B1.1/-B7 |
| 1280491 | FMNDBN/HC160LDE25C1.1 |
| 1275828 | FMNDBN/HC160LDE25C1.1/-B7 |
| 1277374 | FMNDBN/HC160LDE25D1.1/-L24 |
| 1287491 | FMNDBN/HC160LDE25LE1.1/-V |
| 1281981 | FMNDBN/HC160LDE25LZ1.1 |
| 1285251 | FMNDBN/HC160LDE25LZ1.1/-DB |
| 1278328 | FMNDBN/HC160LDE25Y1.1 |
| 1279708 | FMNDBN/HC160LDE3C1.1 |
| 1281415 | FMNDBN/HC160LDE3C1.1/-B7 |
| 1277899 | FMNDBN/HC160LDE3LE1.1 |
| 1292213 | FMNDBN/HC160LDE3Y1.1 |
| 1279190 | FMNDBN/HC160LDE6D1.1/-L24 |
| 1278576 | FMNDBN/HC160LDE6LE1.1 |
| 1281503 | FMNDBN/HC160LDE6LZ1.1/-BO-LED |
| 1280789 | FMNDBN/HC160LDE6LZ1.1/-DB-B7 |
| 1276179 | FMNDBN/HC160LDF10A1.1/-B7 |
| 1276224 | FMNDBN/HC160LDF10D1.1/-L24 |
| 1285776 | FMNDBN/HC160LDF10LE1.1/-A2-B3 |
| 1276312 | FMNDBN/HC160LDF10LZ1.1/-DB-B7 |
| 1291473 | FMNDBN/HC160LDF10Y1.1 |
| 1276955 | FMNDBN/HC160LDF25C1.1/-B7 |
| 1279589 | FMNDBN/HC160LDF25D1.1/-LED-B7 |
| 1277687 | FMNDBN/HC160LDF25LE1.1/-B7 |
| 1285773 | FMNDBN/HC160LDF25LZ1.1/-L24-A2-B3 |
| 1274997 | FMNDBN/HC160LDF3D1.1/-L110 |
| 1286185 | FMNDBN/HC160LDF3D1.1/-L24 |
| 1285603 | FMNDBN/HC160LDF6LE1.1/-B7 |
| 1291885 | FMNDBN/HC250LDE3LE1.1 |
| 1278001 | FMNDBN/HC250LDF10B1.1/-V |
| 1278553 | FMNDBN/HC250LDF10C1.1 |
| 1279793 | FMNDBN/HC250LDF10C1.1/-B7 |
| 1279059 | FMNDBN/HC250LDF10C1.1/-V-B7 |
| 1276666 | FMNDBN/HC250LDF10D1.1/-L24-B7 |
| 1275556 | FMNDBN/HC250LDF10LE1.1 |
| 1279445 | FMNDBN/HC250LDF10LE1.1/-B7 |
| 1285682 | FMNDBN/HC250LDF10LZ1.1 |
| 1281814 | FMNDBN/HC250LDF10Y1.1 |
| 1285161 | FMNDBN/HC250LDF25B1.1 |
| 1276017 | FMNDBN/HC250LDF25D1.1/-L24 |
| 1275743 | FMNDBN/HC250LDF25D1.1/-L24-B7 |
| 1285012 | FMNDBN/HC250LDF25D1.1/-W-L24-A2 |
| 1282297 | FMNDBN/HC250LDF3D1.1/-L24 |
| 1277920 | FMNDBN/HC250LDF3LE1.1 |
| 1290130 | FMNDBN/HC250LDF3LZ1.1 |
| 1279883 | FMNDBN/HC250LDF6A1.1 |
| 1278226 | FMNDBN/HC250LDF6B1.1/-B7 |
| 1287506 | FMNDBN/HC250LDK3B1.1/-V-B7 |
| 1288679 | FMNDBN/HC400LDE6A1.1 |
| 1286540 | FMNDBN/HC400LDE6D1.1/-L24-B7 |
| 1281663 | FMNDBN/HC400LDF10A1.1 |
| 1276911 | FMNDBN/HC400LDF10B1.1 |
| 1275889 | FMNDBN/HC400LDF10D1.1/-L24 |
| 1277242 | FMNDBN/HC400LDF10D1.1/-L24-B7 |
| 1278902 | FMNDBN/HC400LDF10LZ1.1/-CN-B7 |
| 1275123 | FMNDBN/HC400LDF10Y1.1/-B7 |
| 1277375 | FMNDBN/HC400LDF25D1.1/-L24 |
| 1274998 | FMNDBN/HC400LDF3D1.1/-L110 |
| 1285108 | FMNDBN/HC400LDF6LZ1.1/-DB |
| 1280586 | FMNDBN/HC400LDK10C1.1/-B7 |
| 1280697 | FMNDBN/HC400LDK10D1.1/-L24-B7 |
| 1277429 | FMNDBN/HC400LDK10D1.1/-V-L24 |
| 1285646 | FMNDBN/HC400LDK10LE1.1/-B7 |
| 1277377 | FMNDBN/HC400LDK10LZ1.1/-DB |
| 1284977 | FMNDBN/HC400LDK25GC1.1/-LED-SQ-* |
| 1277683 | FMNDBN/HC400LDK6D1.1/-V-L24-B7 |
| 1291921 | FMNDBN/HC60MDD10A1.0 |
| 1291474 | FMNDBN/HC63MDC10Y1.0 |
| 1288014 | FMNDW/HC160LDE25C1.1 |
| 1285071 | FMNDW/HC160LDE25D1.1/-L24 |
| 1285938 | FMNDW/HC160LDE25LE1.1 |
| 1275183 | FMNDW/HC160LDE25LZ1.1/-DB |
| 1287547 | FMNDW/HC160LDE25LZ1.1/-DB-A8 |
| 1280953 | FMNDW/HC160LDE25Y1.1 |
| 1284615 | FMNDW/HC160LDE50B1.1/-V-B7 |
| 1277894 | FMNDW/HC160LDE50LZ1.1/-DB-A2-B3 |
| 1276426 | FMNDW/HC160LDF100B1.1/-B7 |
| 1287064 | FMNDW/HC160LDF25LE1.1/-A2-B3 |
| 1285722 | FMNDW/HC250LDF25A1.1 |
| 1278753 | FMNDW/HC250LDF25D1.1/-L24 |
| 1284699 | FMNDW/HC250LDF25D1.1/-L24-W-A2 |
| 1291521 | FMNDW/HC250LDF50C1.1 |
| 1291598 | FMNDW/HC250LDF50D1.1/-L24 |
| 1285153 | FMNDW/HC250LDF50D1.1/-W-L24-A2 |
| 1281111 | FMNDW/HC250LDF50LE1.1/-B7 |
| 1284738 | FMNDW/HC400LDF25A1.1/-B7 |
