FLND - Напорный линейный сдвоенный фильтр по DIN 24550, давление до 63 бар
Линейные напорные сдвоенные фильтры с алюминиевым корпусом на малое давление 63 бар устанавливаются, как правило после насоса, и служат для защиты всей системы от загрязнений в трубопроводах с небольшим давлением. Могут применяться в контурах фильтрации и охлаждения масла (кондиционирования рабочей жидкости).
Максимальный расход - до 400 л/мин
Максимальное давление - до 63 бар
Типоразмер от 0060 до 0400
Материал фильтроэлемента: стекловолокно, сетка из нержавеющей стали
Тонкость фильтрации: 1 мкм, 3 мкм, 5 мкм, 10 мкм, 20 мкм, 25 мкм, 50 мкм, 100 мкм, 200 мкм
Материал уплотнений: NBR или FKM
Индикаторы загрязнений: визуальный, электрический, визуально-электрический
Корпусные фильтра из алюминия спроектированы в соответствии с международными нормативными документами. Они состоят из головки фильтра со встроенной переключающей арматурой и ввинчиваемыми стаканами фильтра.
Схематическое изображение для гидравлических схем
Описание
Корпусные фильтра из алюминия спроектированы в соответствии с международными нормативными документами. Они состоят из головки фильтра со встроенной переключающей арматурой и ввинчиваемыми стаканами фильтра.
Схематическое изображение для гидравлических схем

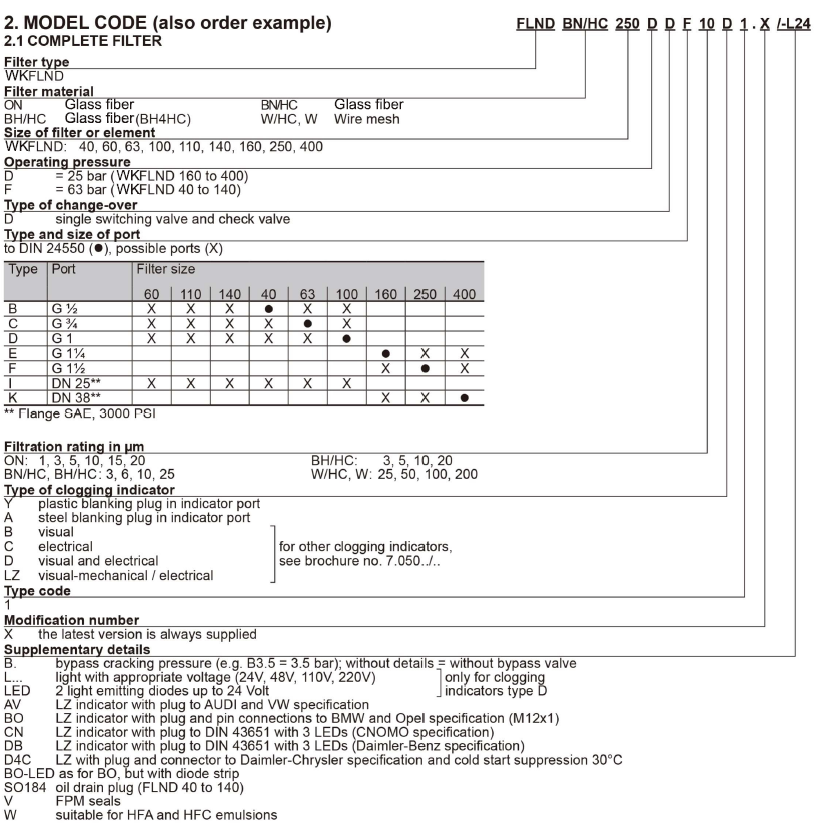

Код заказа
Технические характеристики
Номинальное давление 25 бар (FLND 160 - 400), 63 бар (FLND 40 - 140)
Температурный диапазон от -10 °C до +100 °C
Материал головки фильтра = алюминий
Материал стакана фильтра = алюминий
Тип индикатора загрязнения VW
Давление срабатывания индикатора загрязнения 2,5 бар или 5 бар
Давление открытия перепускного клапана 3,5 бар или 7 бар (опция)

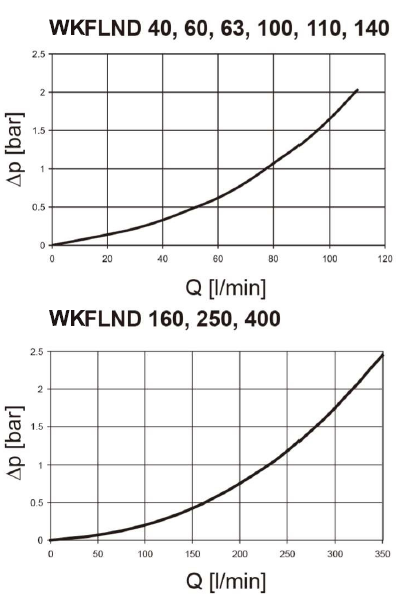

Графики

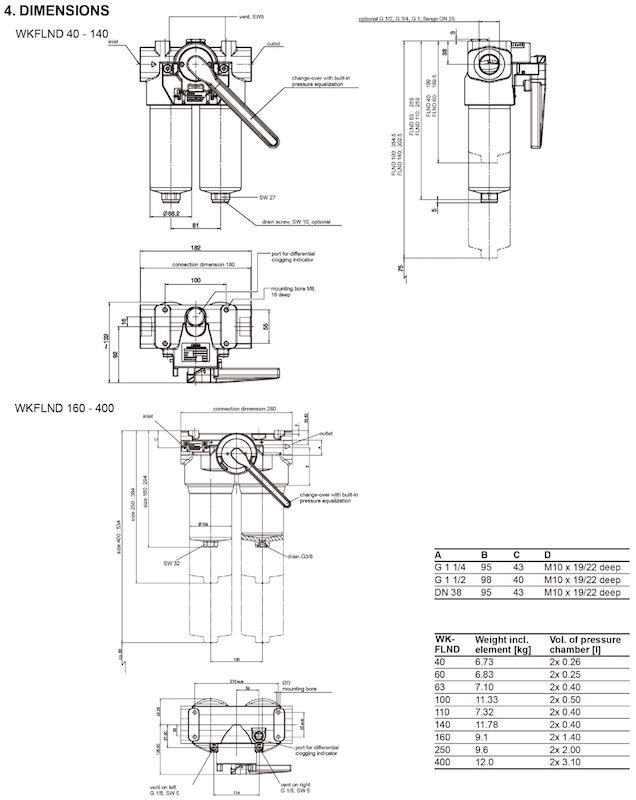

Размеры, мм

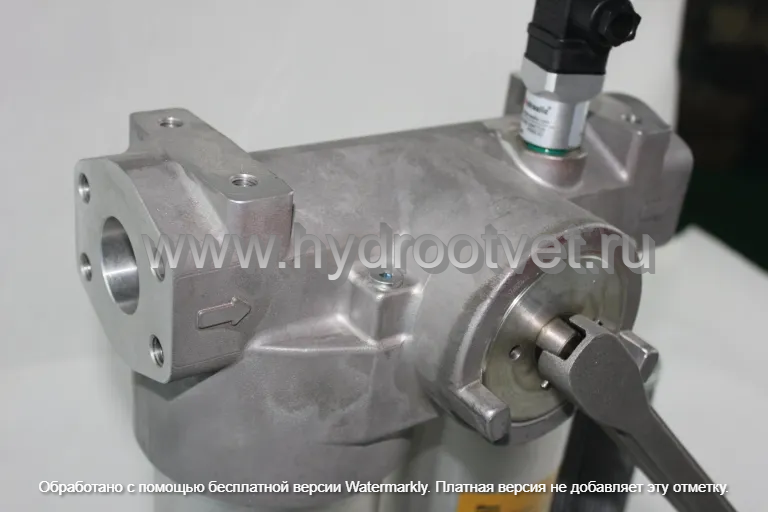

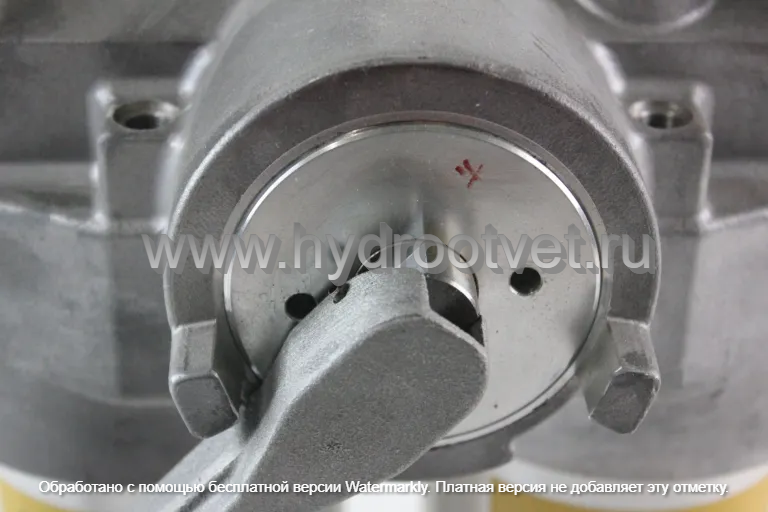

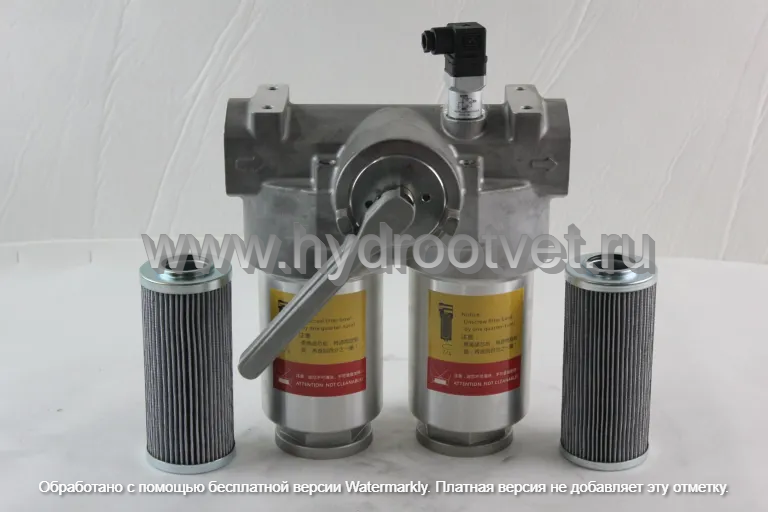

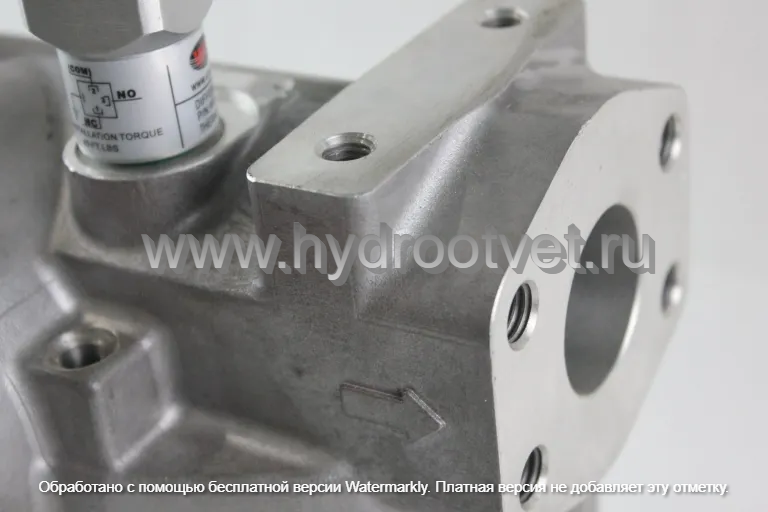

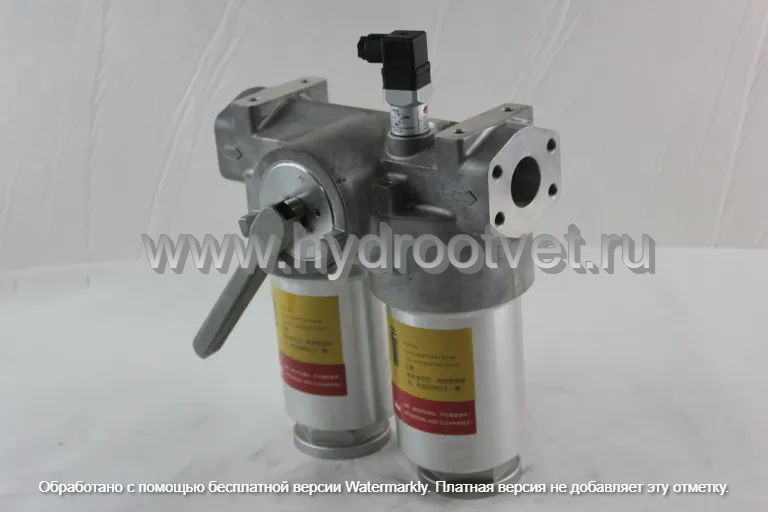

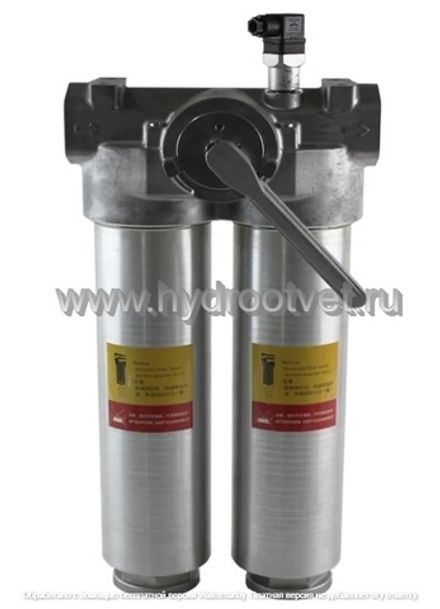

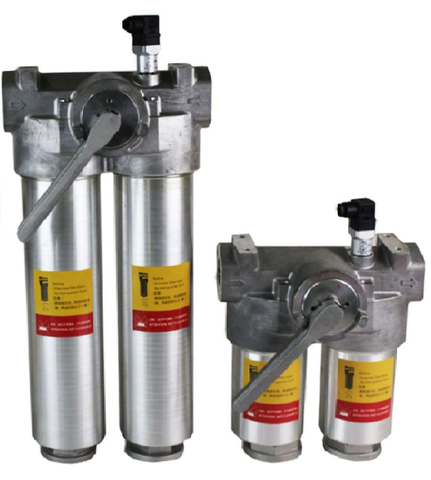

Фото
1 Возможные коды и артикулы
| 1274433 | FLNDBN/HC160DDF25LZ1.1/-DB |
| 1281090 | FLNDBN/HC160DDF6LE1.1/-A2-B3 |
| 1292079 | FLNDBN/HC250DDE10LZ1.1/-B7 |
| 1286522 | FLNDBN/HC250DDE10LZ1.1/-DB |
| 1286139 | FLNDBN/HC250DDE3A1.1 |
| 1280703 | FLNDBN/HC250DDF10D1.1/-V-LED |
| 1287413 | FLNDBN/HC250DDF10LE1.1 |
| 1269985 | FLNDBN/HC250DDF10LE1.1/-A2-B3 |
| 1272398 | FLNDBN/HC250DDF10LZ1.1 |
| 1282308 | FLNDBN/HC250DDF10LZ1.1/-BO |
| 1279298 | FLNDBN/HC250DDF10LZ1.1/-DB |
| 1281662 | FLNDBN/HC250DDF25A1.1 |
| 1274736 | FLNDBN/HC250DDF25B1.1 |
| 1279395 | FLNDBN/HC250DDF25B1.1/-A2 |
| 1284933 | FLNDBN/HC250DDF25B1.1/-A2-B3 |
| 1273743 | FLNDBN/HC250DDF25B1.1/-B7 |
| 1281302 | FLNDBN/HC250DDF25C1.1 |
| 1274877 | FLNDBN/HC250DDF25C1.1/-B7 |
| 1279133 | FLNDBN/HC250DDF25LE1.1 |
| 1284880 | FLNDBN/HC250DDF25LZ1.1/-CN-* |
| 1280476 | FLNDBN/HC250DDF25Y1.1 |
| 1276215 | FLNDBN/HC250DDF3D1.1/-L24-A2-B3 |
| 1280075 | FLNDBN/HC250DDF3D1.1/-L24-B7 |
| 1276315 | FLNDBN/HC250DDF6A1.1/-V |
| 1280394 | FLNDBN/HC250DDF6D1.1/-L24 |
| 1272764 | FLNDBN/HC250DDF6D1.1/-L24-A2 |
| 1274611 | FLNDBN/HC250DDF6D1.1/-LED |
| 1272782 | FLNDBN/HC250DDF6D1.1/-LED-A2-B3 |
| 1274911 | FLNDBN/HC250DDF6GC1.1/-LED-113-A2 |
| 1291776 | FLNDBN/HC250DDF6LE1.1 |
| 1275488 | FLNDBN/HC250DDF6LE1.1/-A2-B3 |
| 1291584 | FLNDBN/HC250DDF6LZ1.1/-DB |
| 1278438 | FLNDBN/HC250DDF6LZ1.1/-DB-A8 |
| 1285790 | FLNDBN/HC250DDF6LZ1.1/-DB-B7 |
| 1291472 | FLNDBN/HC250DDK10Y1.1 |
| 1288069 | FLNDBN/HC40FDB10A1.1 |
| 1288070 | FLNDBN/HC40FDB25A1.1 |
| 1288498 | FLNDBN/HC400DDF10B1.1 |
| 1287066 | FLNDBN/HC400DDF10C1.1/-A2-B3 |
| 1272609 | FLNDBN/HC400DDF10C1.1/-B7 |
| 1286693 | FLNDBN/HC400DDF10D1.1/-L24 |
| 1273300 | FLNDBN/HC400DDF10LZ1.1/-DB |
| 1278980 | FLNDBN/HC400DDF3C1.1/-A2 |
| 1281043 | FLNDBN/HC400DDF6B1.1/-A2-B3 |
| 1288898 | FLNDBN/HC400DDF6D1.1/-L24-A2-B3 |
| 1285107 | FLNDBN/HC400DDF6LZ1.1/-DB-B7 |
| 1278782 | FLNDBN/HC400DDK10A1.1 |
| 1275784 | FLNDBN/HC400DDK10B1.1 |
| 1275888 | FLNDBN/HC400DDK10C1.1 |
| 1274054 | FLNDBN/HC400DDK10D1.1/-LED |
| 1285977 | FLNDBN/HC400DDK10D1.1/-LED-B7 |
| 1280826 | FLNDBN/HC400DDK10LZ1.1/-DB |
| 1291646 | FLNDBN/HC400DDK10LZ1.1/-V-B7 |
| 1275254 | FLNDBN/HC400DDK10Y1.1 |
| 1279817 | FLNDBN/HC400DDK25A1.1/-B7 |
| 1274700 | FLNDBN/HC400DDK25C1.1 |
| 1284616 | FLNDBN/HC400DDK25LE1.1 |
| 1275896 | FLNDBN/HC400DDK3D1.1/-L24 |
| 1278740 | FLNDBN/HC400DDK3D1.1/-LED |
| 1276870 | FLNDBN/HC400DDK6A1.1 |
| 1277499 | FLNDBN/HC400DDK6A1.1/-B7 |
| 1280897 | FLNDBN/HC400DDK6A1.1/-V-B7 |
| 1275685 | FLNDBN/HC400DDK6C1.1 |
| 1281592 | FLNDBN/HC400DDK6D1.1/-L24 |
| 1281548 | FLNDBN/HC400DDK6LE1.1/-V-B7 |
| 1291583 | FLNDBN/HC400DDK6LZ1.1/-DB |
| 1291871 | FLNDW/HC110FDC50A1.1 |
| 1279740 | FLNDW/HC160DDE100A1.1 |
| 1277353 | FLNDW/HC160DDE100B1.1/-A2 |
| 1279067 | FLNDW/HC160DDE100B1.1/-V-B7 |
| 1275068 | FLNDW/HC160DDE100C1.1 |
| 1281353 | FLNDW/HC160DDE100C1.1/-A2 |
| 1278968 | FLNDW/HC160DDE100D1.1/-L24-B7 |
| 1277398 | FLNDW/HC160DDE100D1.1/-V-L24-B7 |
| 1274422 | FLNDW/HC160DDE100LZ1.1/-A2-B0 |
| 1277759 | FLNDW/HC160DDE200BM1.1/-V-A2 |
| 1279110 | FLNDW/HC160DDE200D1.1/-V-L24-B7 |
| 1287520 | FLNDW/HC160DDE25A1.1 |
| 1287014 | FLNDW/HC160DDE25A1.1/-B3 |
| 1279713 | FLNDW/HC160DDE25A1.1/-V |
| 1278511 | FLNDW/HC160DDE25B1.1/-A2-B3 |
| 1273875 | FLNDW/HC160DDE25B1.1/-B7 |
| 1277642 | FLNDW/HC160DDE25BM1.1 |
| 1277703 | FLNDW/HC160DDE25D1.1/-L110 |
| 1281958 | FLNDW/HC160DDE25D1.1/-L24 |
| 1278165 | FLNDW/HC160DDE25D1.1/-L24-A2 |
| 1285531 | FLNDW/HC160DDE25D1.1/-V-L24-B7 |
| 1286602 | FLNDW/HC160DDE25LZ1.1/-A2-B3 |
| 1278409 | FLNDW/HC160DDE25Y1.1 |
| 1281341 | FLNDW/HC160DDE50A1.1 |
| 1281404 | FLNDW/HC160DDE50A1.1/-B7 |
| 1276893 | FLNDW/HC160DDE50B1.1/-A2 |
| 1275767 | FLNDW/HC160DDE50D1.1/-L24 |
| 1281473 | FLNDW/HC160DDE50D1.1/-L24-A2-B3 |
| 1272872 | FLNDW/HC160DDE50D1.1/-LED |
| 1272871 | FLNDW/HC160DDE50D1.1/-V-LED |
| 1280505 | FLNDW/HC160DDF25D1.1/-L24 |
| 1279417 | FLNDW/HC160DDF25D1.1/-L24-A2-B3 |
| 1286928 | FLNDW/HC160DDK100A1.1 |
| 1286223 | FLNDW/HC160DDK100LE1.1/-A2 |
| 1288174 | FLNDW/HC250DDE25B1.1/-V-B7 |
| 1278386 | FLNDW/HC250DDF100A1.1 |
| 1285866 | FLNDW/HC250DDF100B1.1/-A1.5-B2 |
| 1279300 | FLNDW/HC250DDF100B1.1/-V-B7 |
| 1277618 | FLNDW/HC250DDF100C1.1 |
| 1275648 | FLNDW/HC250DDF100C1.1/-V |
| 1285854 | FLNDW/HC250DDF100C1.1/-W-A2 |
| 1288295 | FLNDW/HC250DDF100LE1.1 |
| 1278921 | FLNDW/HC250DDF100LZ1.1/-BO-B7 |
| 1286127 | FLNDW/HC250DDF200A1.1 |
| 1281410 | FLNDW/HC250DDF200B1.1 |
| 1273803 | FLNDW/HC250DDF200C1.1/-V |
| 1285952 | FLNDW/HC250DDF200D1.1/-L24 |
| 1272916 | FLNDW/HC250DDF25B1.1/-B7 |
| 1281487 | FLNDW/HC250DDF25BM1.1/-A2 |
| 1274744 | FLNDW/HC250DDF25C1.1 |
| 1279418 | FLNDW/HC250DDF25D1.1/-L24-A2-B3 |
| 1285152 | FLNDW/HC250DDF25LZ1.1/-BO-B7 |
| 1277995 | FLNDW/HC250DDF25UF1.1 |
| 1273678 | FLNDW/HC250DDF50A1.1 |
| 1287391 | FLNDW/HC250DDF50B1.1 |
| 1279062 | FLNDW/HC250DDF50BM1.1/-A2 |
| 1284718 | FLNDW/HC250DDF50D1.1/-L24 |
| 1274343 | FLNDW/HC250DDF50D1.1/-V-L24 |
| 1278151 | FLNDW/HC250DDF50V1.1/-A2-B3 |
| 1281044 | FLNDW/HC250DDK100LE1.1/-A2 |
| 1287076 | FLNDW/HC400DDE50B1.1/-A2-B3 |
| 1284602 | FLNDW/HC400DDF100C1.1/-W |
| 1284774 | FLNDW/HC400DDF100C1.1/-W-A2 |
| 1279292 | FLNDW/HC400DDF25B1.1 |
| 1278730 | FLNDW/HC400DDF25C1.1 |
| 1286219 | FLNDW/HC400DDK100A1.1 |
| 1285700 | FLNDW/HC400DDK100C1.1 |
| 1276913 | FLNDW/HC400DDK100C1.1/-V-B7 |
| 1281887 | FLNDW/HC400DDK100LE1.1 |
| 1287162 | FLNDW/HC400DDK100LZ1.1 |
| 1275445 | FLNDW/HC400DDK25B1.1 |
| 1276495 | FLNDW/HC400DDK25C1.1/-B7 |
| 1279221 | FLNDW/HC400DDK25C1.1/-V |
| 1274053 | FLNDW/HC400DDK25D1.1/-LED |
| 1274419 | FLNDW/HC400DDK25D1.1/-V-L24 |
| 1285663 | FLNDW/HC400DDK50A1.1/-B3 |
| 1288861 | FLNDW/HC400DDK50A1.1/-V-B7 |
| 1282387 | FLNDW/HC400DDK50B1.1 |
| 1288923 | FLNDW/HC400DDK50B1.1/-A2-B3 |
| 1274701 | FLNDW/HC400DDK50C1.1 |
| 1290400 | FLNDW/HC60FDD25B1.1 |
2 Возможные коды и артикулы
| 1285031 | FLND100FDDXXA1.1 |
| 1285032 | FLND100FDDXXA1.1/-B7 |
| 1285035 | FLND110FDCXXA1.1 |
| 1285036 | FLND110FDCXXA1.1/-B7 |
| 1285037 | FLND140FDDXXA1.1 |
| 1285038 | FLND140FDDXXA1.1/-B7 |
| 1271493 | FLND160DDEXXA1.1 |
| 1272499 | FLND160DDEXXA1.1/-B3 |
| 1271495 | FLND160DDEXXA1.1/-B7 |
| 1271494 | FLND160DDEXXA1.1/-V |
| 1271496 | FLND160DDEXXA1.1/-V-B7 |
| 1288976 | FLND160DDEXXY1.1 |
| 1272519 | FLND160DDFXXA1.1 |
| 1272713 | FLND160DDFXXA1.1/-B3 |
| 1284596 | FLND160DDFXXA1.1/-B7 |
| 1290601 | FLND160DDFXXA1.1/-V |
| 1275916 | FLND160DDKXXA1.1 |
| 1290602 | FLND250DDEXXA1.1 |
| 1286962 | FLND250DDEXXA1.1/-B7 |
| 1288415 | FLND250DDEXXA1.1/-V-B7 |
| 1271497 | FLND250DDFXXA1.1 |
| 1290603 | FLND250DDFXXA1.1/-B2 |
| 1270600 | FLND250DDFXXA1.1/-B3 |
| 1271499 | FLND250DDFXXA1.1/-B7 |
| 1271498 | FLND250DDFXXA1.1/-V |
| 1271500 | FLND250DDFXXA1.1/-V-B7 |
| 1290604 | FLND250DDFXXY1.1 |
| 1276419 | FLND250DDKXXA1.1 |
| 1285027 | FLND40FDBXXA1.1 |
| 1285028 | FLND40FDBXXA1.1/-B7 |
| 1290605 | FLND400DDEXXA1.1/-B3 |
| 1284830 | FLND400DDEXXA1.1/-B7 |
| 1279268 | FLND400DDFXXA1.1 |
| 1272586 | FLND400DDFXXA1.1/-B3 |
| 1281243 | FLND400DDFXXA1.1/-B7 |
| 1271501 | FLND400DDKXXA1.1 |
| 1271503 | FLND400DDKXXA1.1/-B7 |
| 1271502 | FLND400DDKXXA1.1/-V |
| 1271504 | FLND400DDKXXA1.1/-V-B7 |
| 1290606 | FLND400DDKXXY1.1 |
| 1285033 | FLND60FDBXXA1.1 |
| 1285034 | FLND60FDBXXA1.1/-B7 |
| 1290163 | FLND60FDDXXA1.1 |
| 1291680 | FLND60FDDXXA1.1/-B3.5 |
| 1285029 | FLND63FDCXXA1.1 |
| 1285030 | FLND63FDCXXA1.1/-B7 |
| 1291686 | FLNDBH/HC100FDD3D1.1/-V-L24 |
| 1286468 | FLNDBH/HC160DDE10D1.1/-L220 |
| 1285077 | FLNDBH/HC400DDK10B1.1 |
| 1276672 | FLNDBN/HC160DDE10A1.1 |
| 1278207 | FLNDBN/HC160DDE10A1.1/-B3 |
| 1275817 | FLNDBN/HC160DDE10A1.1/-B7 |
| 1279715 | FLNDBN/HC160DDE10A1.1/-V |
| 1274558 | FLNDBN/HC160DDE10B1.1 |
| 1273876 | FLNDBN/HC160DDE10B1.1/-B7 |
| 1279156 | FLNDBN/HC160DDE10C1.1 |
| 1282220 | FLNDBN/HC160DDE10C1.1/-A2 |
| 1275077 | FLNDBN/HC160DDE10D1.1/-L220 |
| 1274387 | FLNDBN/HC160DDE10D1.1/-L24 |
| 1286604 | FLNDBN/HC160DDE10D1.1/-L24-A1 |
| 1280885 | FLNDBN/HC160DDE10D1.1/-L24-B7 |
| 1275920 | FLNDBN/HC160DDE10D1.1/-LED-A2-B3 |
| 1279615 | FLNDBN/HC160DDE10D1.1/-LED-B7 |
| 1279780 | FLNDBN/HC160DDE10LE1.1 |
| 1275737 | FLNDBN/HC160DDE10LE1.1/-B7 |
| 1280830 | FLNDBN/HC160DDE10LZ1.1/-AV |
| 1275189 | FLNDBN/HC160DDE10LZ1.1/-D4C-B7 |
| 1272324 | FLNDBN/HC160DDE10LZ1.1/-DB |
| 1277168 | FLNDBN/HC160DDE10LZ1.1/-DB-A2 |
| 1281897 | FLNDBN/HC160DDE10LZ1.1/-V |
| 1280173 | FLNDBN/HC160DDE10Y1.1 |
| 1281318 | FLNDBN/HC160DDE25A1.1 |
| 1276166 | FLNDBN/HC160DDE25B1.1 |
| 1272703 | FLNDBN/HC160DDE25B1.1/-A2 |
| 1278088 | FLNDBN/HC160DDE25B1.1/-A2-B3 |
| 1277248 | FLNDBN/HC160DDE25B1.1/-B7 |
| 1273646 | FLNDBN/HC160DDE25C1.1 |
| 1285309 | FLNDBN/HC160DDE25D1.0/-L48 |
| 1281014 | FLNDBN/HC160DDE25D1.1/-L24 |
| 1273266 | FLNDBN/HC160DDE25D1.1/-L24-B7 |
| 1281025 | FLNDBN/HC160DDE25LZ1.1/-A2 |
| 1276860 | FLNDBN/HC160DDE25Y1.1 |
| 1279714 | FLNDBN/HC160DDE3A1.1/-V |
| 1288775 | FLNDBN/HC160DDE3B1.1 |
| 1275398 | FLNDBN/HC160DDE3D1.1/-L24 |
| 1282183 | FLNDBN/HC160DDE3LZ1.1/-BO-LED |
| 1274364 | FLNDBN/HC160DDE6A1.1 |
| 1281246 | FLNDBN/HC160DDE6B1.1/-A2-B3 |
| 1288140 | FLNDBN/HC160DDE6C1.1 |
| 1288139 | FLNDBN/HC160DDE6D1.1/-L110 |
| 1275126 | FLNDBN/HC160DDE6D1.1/-L24 |
| 1288592 | FLNDBN/HC160DDE6D1.1/-L24-A2-B3 |
| 1274612 | FLNDBN/HC160DDE6D1.1/-LED |
| 1278554 | FLNDBN/HC160DDE6LE1.1 |
| 1279494 | FLNDBN/HC160DDE6LZ1.1/-BO-LED |
| 1288805 | FLNDBN/HC160DDE6Y1.1/-B7 |
| 1277777 | FLNDBN/HC160DDF10C1.1 |
| 1287519 | FLNDBN/HC160DDF10C1.1/-B7 |
| 1285777 | FLNDBN/HC160DDF10LE1.1/-A2-B3 |
| 1272681 | FLNDBN/HC160DDF10LZ1.1/-DB |
| 1285772 | FLNDBN/HC160DDF10LZ1.1/-L24-A2-B3 |
| 1272879 | FLNDBN/HC160DDF25B1.1/-A2 |
| 1281389 | FLNDBN/HC160DDF25D1.1/-L24 |
| 1287490 | FLNDBN/HC160DDF25D1.1/-V-L24 |
